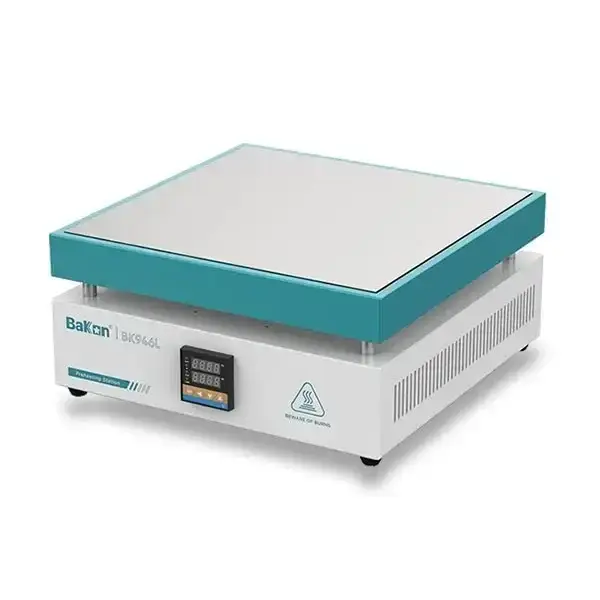

แผ่นความร้อน BK946L Heating Plate Pre-heating Station

Preheating station
Adopt advanced quartz infrared heating element to heat fast and high efficiency.
Special IC can accurately control the temperature range, which can be set between 100°C and 380°C.
Built-in temperature sensor, temperature measurement and actual temperature digital tube display.
It can be used for preheating of circuit boards and other processes that require uniform heating of the whole.
Anti-static design.

Application range:

• Any electronic industry sealing, dispensing and constant humidity heating.
• Welding and maintenance of aluminum substrates in the LED industry.
• Preheating of mold core in mold factory.
• BGA repair solder ball, especially suitable for the desoldering work of large-size BGA.
• Baking, drying and other temperature tests of samples heated at a constant temperature in various industries are essential tools for biology, genetics, medicine and health, environmental protection, biochemical laboratories, analysis rooms, and teaching and research.

Specifications:

• Model: BK946L
• Output power: 1600W
• Heating area: 300 x 300mm
• Temperature adjustment range: 50°C ~ 350°C
• Temperature stability: ±2°C
• Display form: LED
• Use environment temperature: 0 ~ 45°C
• Input voltage: AC220V
• Dimensions: L320 x W320 x H145mm
• Weight: 9.5Kg
