หัววัดทอร์คดิจิตอล 20-200Nm H4DT200 - Digital Torque Adapter

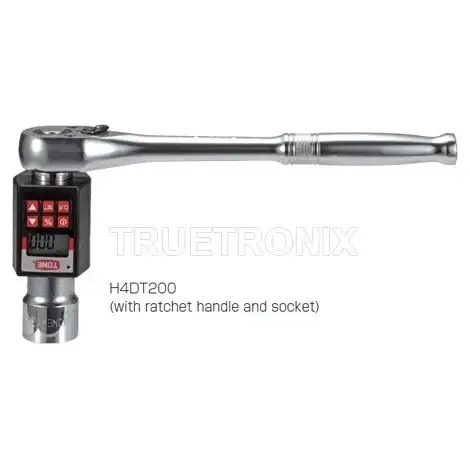

DIGITORQON HDH-series is a digital torque measurement device mounted between the manual handle, such as a ratchet handle, a spinner handle, ete., and the socket.

2 measurement modes (peak & tracking) available in both CW and CCW directions.

Alert by beeping sound when reaching the target torue.

Set the beepsound function arbitrarily between 50% and 95% of the target torque.

SPECIFICATIONS:

• Model : H3DT135
• Capacity Torque Range (N.m) Min. ~ Max. : 20 ~ 200
• Unit : N.m
• Square Drive Male/Female (mm) : 12.7

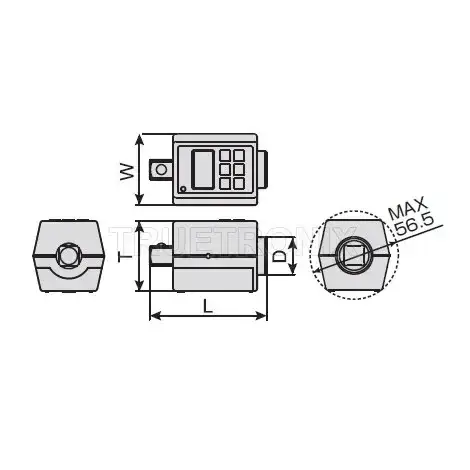

• Dimensions (mm) W : 45
• Dimensions (mm) T : 45
• Dimensions (mm) D : 24
• Dimensions (mm) L : 75
• Weigth (kg) : 0.184
• Case Size (mm) : 130x107x53

*Exclude battery:

• Repeated Accuracy:+/-3%
• Battery:AAA Alkaline BatteryX2
• Torque Readout (Unit:N.m)
• H3DT200:0.01 increment (from 20.00 to 99.99N.m), 0.1 increment (from 100.0 to 200.0N.m)
• Operating Temperature: 5°C~42°C
• Storage Temperature: -20°C~50°C
• Repeated Accuracy: ±3%

Accessory:

• Calibration Certificate W/H Traceablilty : 1
• Instruction Manual : 1
• Plastic Case : 1
• AAA Alkaline Battery : 2
