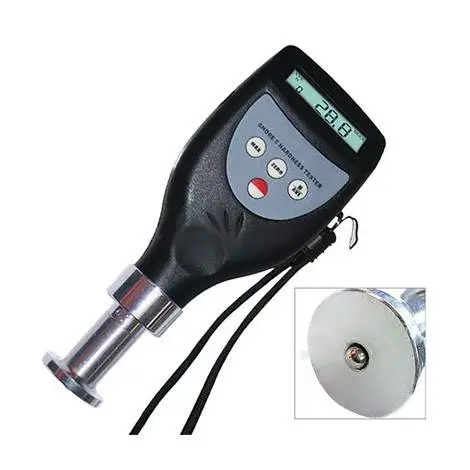

เครื่องทดสอบความแข็งฟองน้ำ DT-6510C Sponges's Durometer

HT-6510C_1 is a digital durometer type C designed test a wide variety of foams and sponges. It has Integrated or Built-in Probe. The resistance toward the indentation of materials are measured quickly with this precision perfect tool. It measures the depth of an indentation in the material created by a given force on a standardized presser foot. Provides a 0~100 value and the LCD digital display features bold, easy to read numbers indicating a specific value, with a 0.1 resolution.

FEATURES:

• With CE marking and also conforms with ISO-7619 and ISO-868, DIN53505, ASTM D 2240, and JIS K7215 set standards.
• Equipped with INTEGRATED (built-in) PROBE and designed to determine the hardness of different types of foams & sponges
• Equipped with wide measuring range, high resolution and delivers accurate reading with no guessing errors.
• Uses Microcomputer LSI circuit and crystal time base to offer high accuracy measurement & fast measuring time.
• Uses operation stand capable of applying the specimen to the indentor with sufficient recommended force that allows accurate and repeatable hardness tests to increased stability and maximum repeatability.
• Complete with FREE sturdy carrying case with contoured rubber compartments that fits the device perfectly, sandwiched between rubber & foam when closed to achieve optimum shock absorption.

SPECIFICATIONS:

• Test scale: Shore C Hardness
• Parameters displayed: hardness result, average value, max. value
• Measurement range: 0-100HC (Shore C)
• Microcomputer: Newly developed microcomputer delivers maximum results
• Measurement deviation: <1% HC
• Resolution: 0.1 HC  Operating conditions:
• Display: 4 digits, 10mm LCD
• Battery indicator: low battery indicator
• Power supply: 4 x 1.5V AAA (UM-4) battery
• Auto switch off
• Dimensions: 162mm x 65mm x 38mm
• Weight (without batteries): 173g
