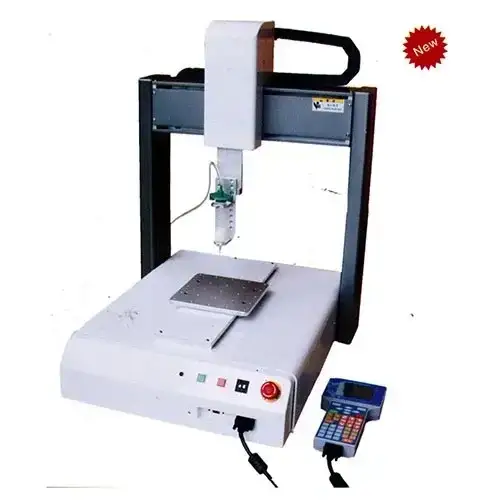

หุ่นยนต์หยอดกาวอัตโนมัติ DJ-300 Glue Dispensing Robot

FEATURES:

• Replace the human labor and save labor cost;
• Simple and convenient operation, high speed and precise control;
• Program files can be uploaded / downloaded by USD disk;
• Realize the precise dispensing by the high-precision motor;
• High performance linear structure platform with nice appearance;

SPECIFICATIONS:

• Model DJ-300
• Movement Range (mm) X:300  Y:300  Z:80
• Speed Range (mm/sec) X:0.1-800  Y:0.1-800  Z:0.1-400
• Repeat Accuracy (mm) +- 0.02
• Resolution (mm) 0.01
• Loaded Weight worktable: 8kg;  head: 2kg
• Speed Control 3-Dimensional line, circular interpolation, smoothly
• Gluing Compensation glue feeding ahead or delay, etc
• Demo File Capacity   <=999 files, Max 60,000 points for each file
• Processed File Capacity <=255 files
• Dimensions 620(W) x 660(D) x 770(H)
• Weight about 70 kg
