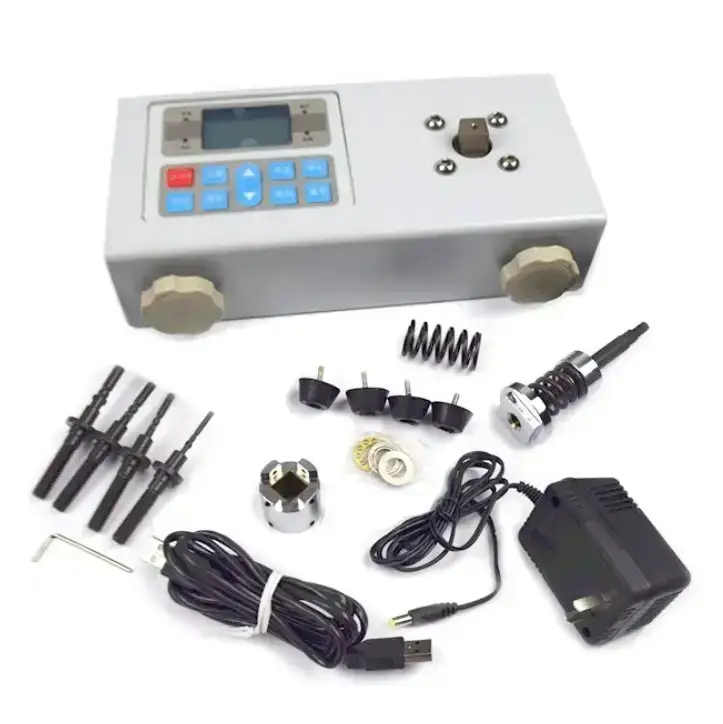

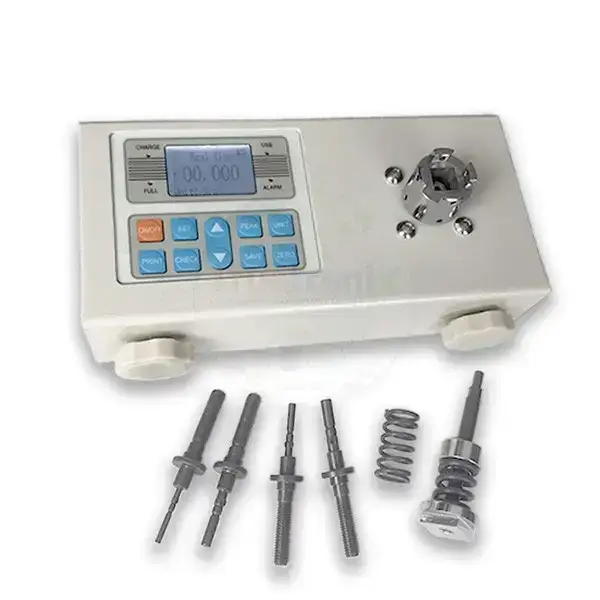

เครื่องวัดแรงบิด Digital Torque Meter ANL-20

FEATURES:

ANL Series Digital Torque Gauge is R&D for testing and measuring many kinds of torque. The Meter is applied with the measured and calibrated torque of motorize or air-driving clamps, torque screwdriver and torque spanner. It is applied with the test of wrench force, wrest fractured force. The gauge is used in Electric industry, Light industry, Machinery manufacture, Scientific research, and so on.

SPECIFICATIONS:

• Model: ANL-20
• Measuring range / Division value:
  • N.m: 20.000 / 0.001
  • Kgf.cm: 204.21 / 0.01
  • Ib.in: 177.24 / 0.01
• Precision: ±1%(10%~100% of full scale)
• Peak Value Sampling Frequency: 2000HZ
• Power: 8.4V 1.2Vx7 Ni-MH Battery Group
• Power adapter: Input: AC 110-220V 50Hz Output: DC 12V 500mA
• Dimension: 230mm x 70mm x 125mm
• Net Weight: 2 kg.
