เครื่องทดสอบความเป็นฉนวน Insulation Mega Ohm meter DT-6605

DESCRIPTION

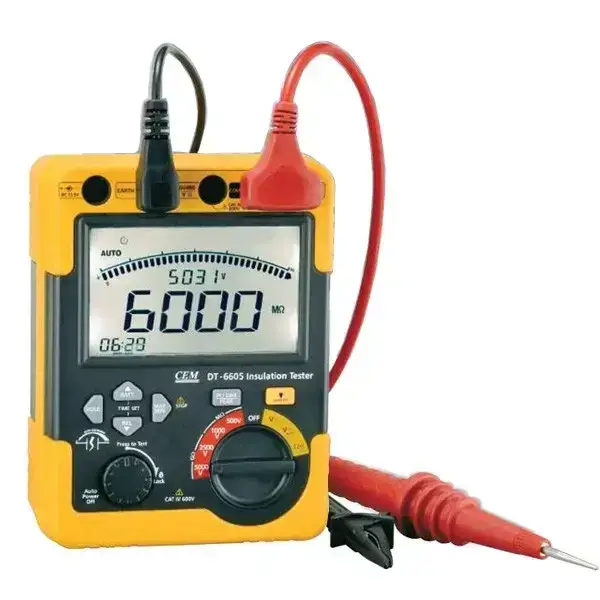

This is a brand new CEM DT-6605 meter. This digital insulation tester is CE certified. This top-of-the-line device provides 500V, 1000V, 2500V and 5000V voltage during the test cycle. It sources up to 1.2mA current during the test to offset the capacitance load. With the auto range function, it can measure up to 60 Giga Ohm with the resolution of 10 mega ohm. The back light LCD screen allows you read easily in the dark. It also comes with a heavy duty carrying case to protect your device when working in the field.

FEATURES

• Wide range measurements from 500V to 5000V and up to 60 Giga Ohm
• Meets IEC61010-1, CAT IV 600V safety standard
• Large 6000 counts digital display with bargraph and backlight
• Polarization index measurement (PI)
• Auto ranging & timer measurement function
• Indication of output voltage and discharge voltage
• Auto-discharge function and voltage output warning function
• Auto power off and battery check
• MAX/MIN, Peak, Relative value & Data hold function for DC/AC voltage measurement
• Power source: LR14 – C size Battery x 8 (included) or 100-240VAC, 50/60Hz AC adapter (included)

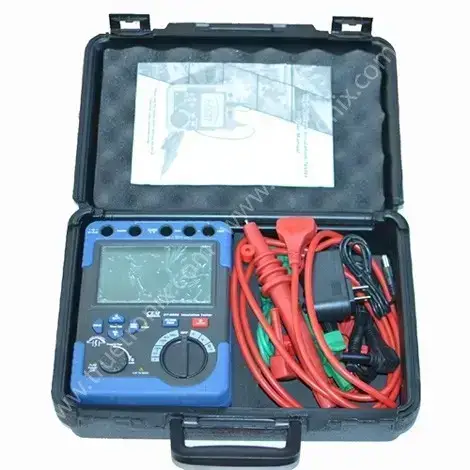

• Accessories: Manual, test leads, AC adapter and plastic carrying case
