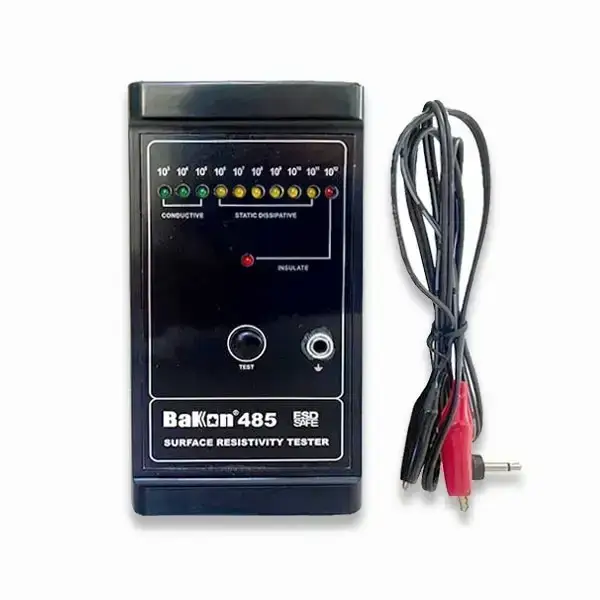

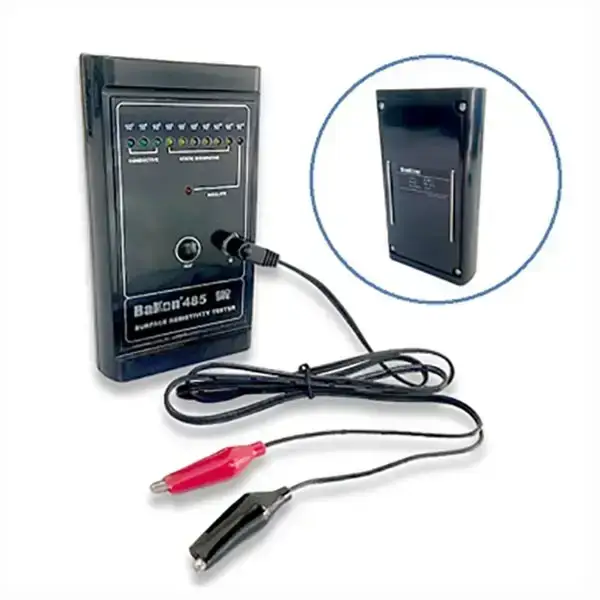

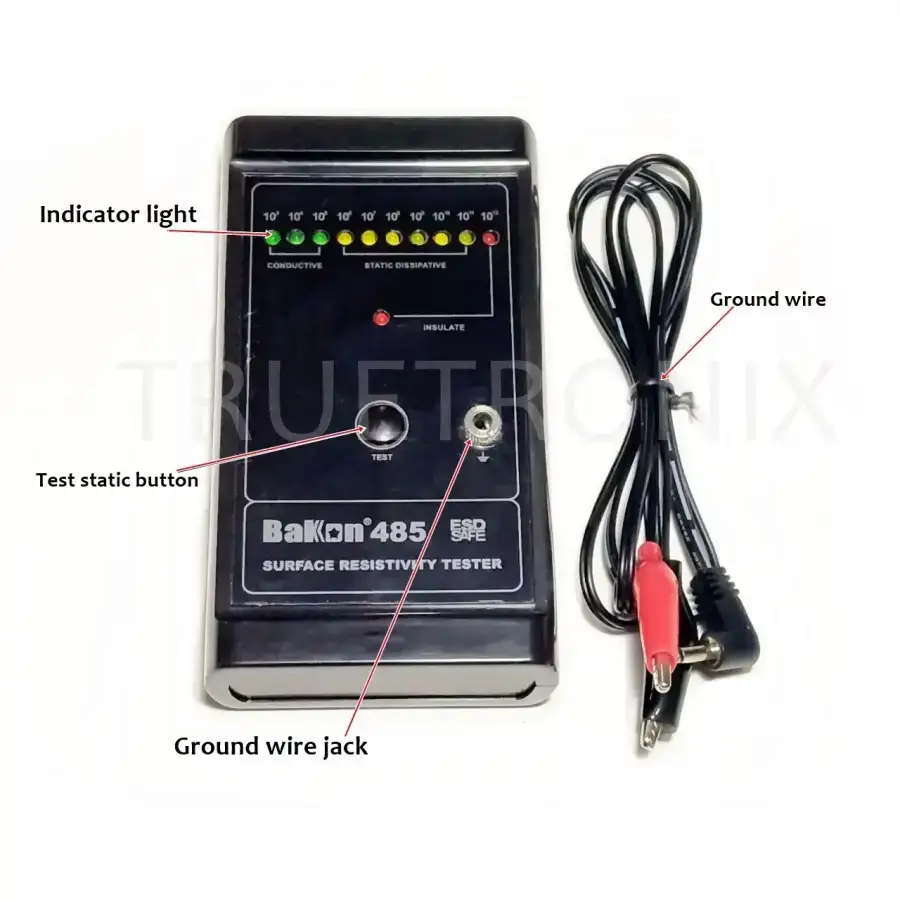

เครื่องวัดความต้านทานบนผิววัสดุ Surface Resistance Tester BK485

Features:

This tester measures the surface resistance of the object and the surface resistance. It is convenient to repeatedly test conductivity,
electrostatic dissipation and insulation. This tester is adopted ASTM Standard D 257 Barcode Sensing Method. Using a high speed
OP-AMP integrated circuit, the classification is done automatically. The integrated circuit is linear, in Logarithm (10% per unit average). The up-conversion point is 1/2 decimal.

Specification

• Measure range: 10³ - 10¹² Ohm
  • Conductive range: 10³ - 10⁵ Ohm
  • Static dissipative range: 10⁶ - 10¹¹ Ohm
  • Insulative range: 10¹² Ohm
• Power supply: 9 Volt PP3 alkaline battery
• Test Voltage: Standard 9 volts
• Analysis: One order of magnitude
• Conversion point: Logarithm on 1/2 decimal (3.16x10n)
• Accurate conversion point: ±1/2 Decimal
• Accuracy: ±5%
• Repeatability: ±5%
• Weight: About 6 ounces (170g)
• Size (mm): 130 x 72 x 30
