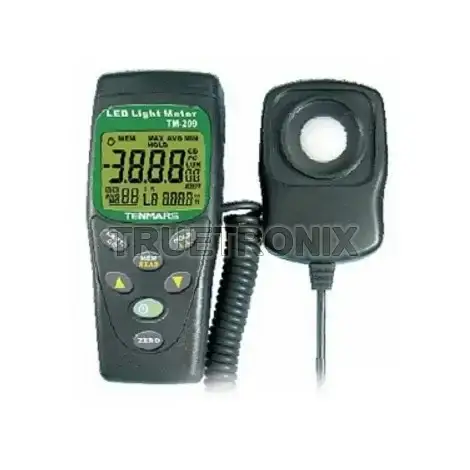

มิเตอร์วัดความเข้มแสง TM-209 LED Light Meter 400000 Lux

LED Light (LUX/FC) Meter Luminous Intensity Measurement - LED Light - All Visible Light Source (Model No.: TM- 209)

DISPLAY:

• 3 3/4 digits LCD with maximum reading 3999.
• Overload indication : “OL” .
• Low battery indication

FUNCTIONS:

• According to JISC1609: 1993 and CNS 5119 general A class specifications.
• Spectral response close to CIE luminous spectral efficiency.
• Measuring intensities of illumination in unit of Lux or Foot-candle.
• Silicon photo diode and filter.
• Measuring light source include all visible light source.
• Cosine angular corrected.
• 99 records storage capacity.
• Luminous Intensity Measurement.
• Auto power off with disable function.
• Data hold.
• Max/Min/AVG hold.
• Reel time clock with calendar.
• Reel Zero function.
• Auto ranging.
• Many applications include: warehouses, factories, office buildings, restaurant, schools, library, hospitals, photographic, video, parking garages, museums, art galleries, stadiums, building security.

Specifications:

• Light Source Selecting : Tungsten/Daylight, Fluorescent, 0~9 select rating
• Display : 3 3/4 digits, 3999 readings
• Sensor : Silicon photo diode and filter
• Measuring range : 40, 400, 4,000, 40,000, 400,000 Lux ; 40, 400, 4,000, 40,000, Foot-candl
• Accuracy : +/-3% (Calibrated to standard incandescent lamp 2856oK) and corrected LED day while-light spectrum. ; +/-6% (other visible light source
• Meter size (LxWxH) : 130x55x38mm
• Sensor size (LxWxH) : 80x55x25
• Weight (including 9V battery) : c250g

Standards Certification:

• CE
• ROHS
