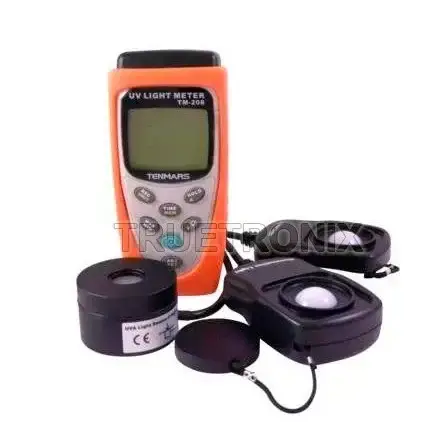

มิเตอร์วัดแสงและเก็บข้อมูล Tenmars TM-208 Datalogging 3 in 1 UVA Light Meter

Datalogging 3 in 1 UVA Light Meter (Model No.: TM-208)

UVA ~ Solar Power ~ Illumination

FEATURES:

• 3 3/4 digits LCD with backlit maximum reading 3999.
• 3 in 1 light sensor design, you can select either one (UVA, Solar or Illumination) for measurment.
• Max/Min/Avg and data hold.
• Auto power off with disable function.
• Low battery indication.
• USB interface, Datalogging capacity: 45,000 records.
• Backlit function.
• Real time clock with calendar.
• Rel (relative) function / Zero Adjustment.

UVA Features:

• Highly reliable direct reading Instrument designed expressly for measuring light intensity at the wafer plane of mask aligners.
• UV curing light sources, and any other UV light source.
• Wavelength : 320 ~ 390nm

Solar Power Features:

• The accuracy is +/-3% at 1,000 Watts/m2.
• Solar power research.
• Physics and optical laboratories.
• Just point the calibrated PV cell at the sun and read the irradiance in Watts/m2 or Btu/ft2.h.
• It's great for those who test PV modules or arrays in the field.

Illumination Features:

• According to JISC1609: 1993 and CNS 5119 general A class spec.
• Spectral response close to CIE luminous spectral efficiency.
• Measuring intensities of illumination in unit of Lux or Foot-candle.
• Silicon photodiode and filter. Cosine angular corrected.

Application:

• Warehouses, factories, office buildings, restaurants, schools, library, hospitals, photographic, video, parking garages, museums, art galleries, stadiums, building security.

Specifications:

• UVA measurement
  • Measuring range : 40.0, 400uW/cm2, 4000uW/cm2, 20mW/cm2
  • Resolution : 0.01, 0.1, 1uW/cm2, 0.01mW/cm2
  • Accuracy : +/-4% Fs+2dgt
  • Wavelength : 320~390nm
• Illumination measurement
  • Measuring range : 40, 400, 4,000, 40,000, 400,000 Lux ; 40, 400, 4,000, 40,000 Foot-candel
  • Resolution : 0.01, 0.1,1, 10, 100 Lux ; 0.01, 0.1, 1, 10 Foot-candel
  • Accuracy : +/-3% (Calibrated to standard incandescent lamp 2856K) ; +/-6%(other visible light source)
  • Wavelength : 400~1100nm
• Solar measurement
  • Measuring range : 40, 400, 1000 W/m2 ; 13, 127, 634 Btu/ft2.h
  • Resolution : 0.01, 0.1, 1 W/m2 ; 0.01, 0.1, 1 Btu/ft2.h
  • Accuracy : +/-5%
  • Wavelength : 400~1100nm
• Datalogging Capacity : 45,000 records
• Sample Time : Approx. 0.25 sec.
• Data Output : USB PC serial interface.
• Power Supply : 9V battery(NEDA 1604 IEC 6F 22 JIS 006P)
• Battery life : approx. 100 hr.
• Weight : approx. 250g

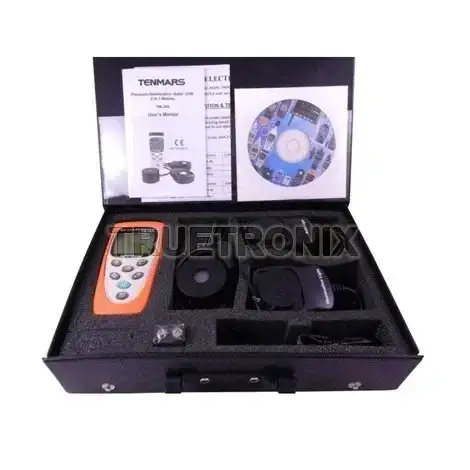

• Accessories
  • Instruction manual.
  • 9V battery (NEDA 1604 IEC 6F 22 JIS 006P)
  • Orange Protection Hoister Carrying case
  • Calibration & Test Certificate
  • UVA sensor probe.
  • SOLAR sensor probe.
  • Illumination sensor probe.
• Main instrument : 130(L) x 56(W) x 38 (H)mm
• Sensor probe size :
  • UVA sensor probe : 49 Dia.x 28(H) mm.
  • SOLAR sensor probe : 80(L) X 55(W) X 25(H)mm.
  • Illumination sensor probe : 80(L) X 55(W) X 25(H)mm

Standards Certification:

• CE
• ROHS
