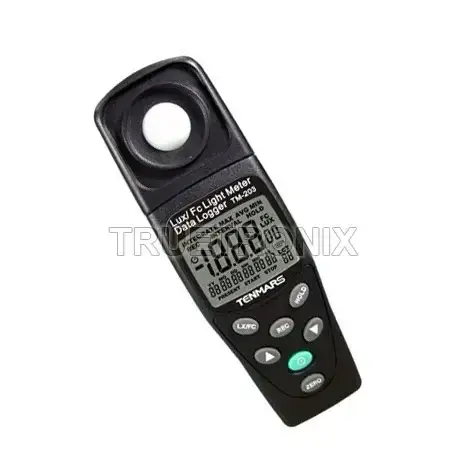

Tenmars TM-203 Digital Auto Ranging Datalogging Light Meter

Digital Auto Ranging Light Meter with Datalogging (Model No.: TM- 203)

Product Description:

• According to JISC1609:1993 and CNS 5119 general A class specifications.
• Spectral response close to CIE luminous spectral efficiency.
• Measuring intensities of illumination in unit of Lux or Foot-candle.
• Measuring lights source include all visible range.
• Cosine angular corrected.
• Autorange.
• Datalogger : USB Interface, 7000 Records.

Application:

• Warehouses, factories, office buildings, restaurants, schools, library, hospitals, photographic,video, parking garages, museums, art galleries, stadiums, building security.

Specifiactions:

• Data hold
• AVG function
• Max/ Min hold
• Zero adjustment
• Auto power off
• Sensor: Silicon photodiode and filter
• Measuring range:
• 20, 200, 2000, 20000, 200000 Lux
• 20, 200, 2000, 20000 Foot-candle

Accuracy:

• +/- 3% (Calibrated to standard incandescent lamp 2856º K)
• +/- 6% (other visible light source)
• Angle deviation from cosine characteristics:
• 30º ~ +/- 2%
• 60º ~ +/- 6%
• 80º ~ +/- 25%

Standards Certification:

• CE
• ROHS

DIMENSION:

• Meter size (LxWxH): 172x56x38mm
• Weight (including battery): 250g
