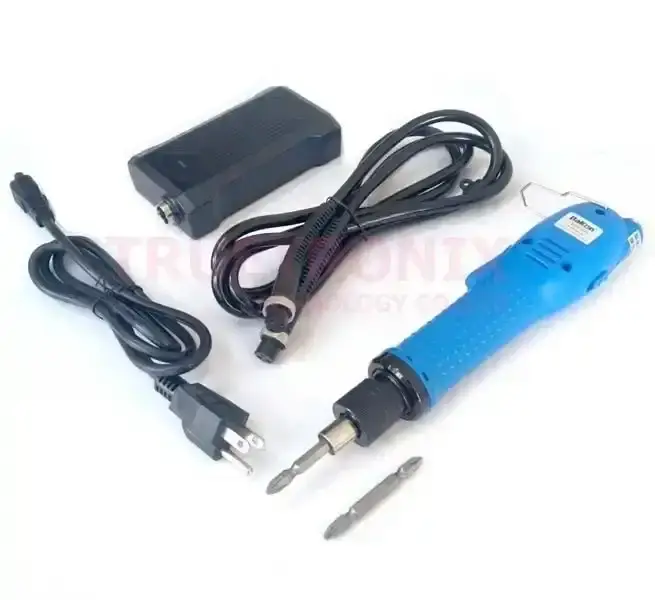

ไขควงทอร์คไฟฟ้า Torque Brushless Electric Screwdriver GHS-15PL-SA

Torque Brushless Electric Screwdriver GHS series

Product Characteristics

• The adoption of top brushless motor ensures powerful performance, high stability and long life.
• Low vibration, noise and EMI meet the requirement of environmental protection, so it is specially suitable for operation in a dustless environment.
• The internal stop gear adopts the magnetic induction system, so it features high sensitivity, instant braking and low impact force.
• The product can be used longer and safer.
• The design of new power supply breaks through the characteristics of traditional ones such as huge volume and large power consumption.
• Therefore, the product is more delicate and easier to be operated. It is suitable for 100V-250V working environment.
• The power cord adopts silicone wire induration-resistance three-core wire, so its service life is much longer.
• The torque is set accurately and the torque force is high-precision.
• The shape is designed according to the ergonomic grip; the shell adopts high-grade PC material. With the delicate volume,
• less weight and resistance to shock, you can use it cozily in a long time to enhance productivity.
• Internal gear assemblies are stamped directly by superior alloy steel, so they can be used longer and more steadily.
• The adjustable rotational speed of 0 1000rpm can meet your different demands.
• Complete functions meet demands in different industries.

SPECIFICATIONS:

• Model: GHS-15PL
• Input voltage: DC-30V
• Torque range
  • 2-15 Kgf.cm
  • 1.76-13.2 Lbf.in
  • 0.2-1.5 N.m
• Torque accuracy: ±3%
• Idling speed (RPM): 1000
• Weight: 430g
• No load current: 0.3A
• Applicable starter: Φ5/H5/H6.35
• Applicable screw diameter
  • Self-tacking tooth: 2.3-3.5mm
  • Mechanical tooth: 2.0-3.0mm
