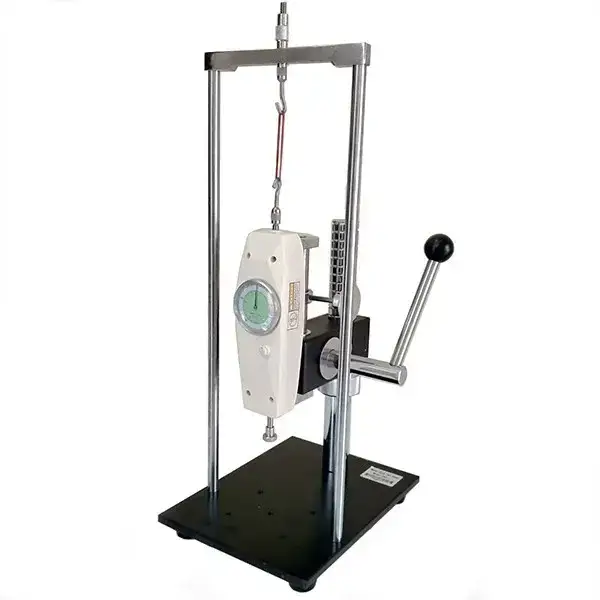

ชุดแท่นทดสอบแรงดึง AST-J Test Stand with Force Gauge NK500

Feature:

AST-J Manual Test Stand(Mas Load 500N) is applied with NK and HF Series Force Gauge, specialized for tension/compression, insertion/withdraw and fracture test in every trade and scientific research organization. Test stand adopt gear drive, manual operation. The height of test stand can be adjusted. Push Pull Gauge can be moved up and down to set orientation configuration. It has the advantage of manual operation, simplicity, tranquilization, expeditiousness and appreciate batch test.

Test Stand AST-J

• Dimension: L*W*H(mm):255x240x550 (10×9.5×21.7 inch)
• Capacity: 500N
• Stroke: 90mm
• Adapt with: NK/HF series force gauge, clamps, digital scale

Force gauge NK-500

• Capacity: 500N/50Kgf
• Resolution: 2.5N/0.25Kgf
• Unit: N, Kgf
