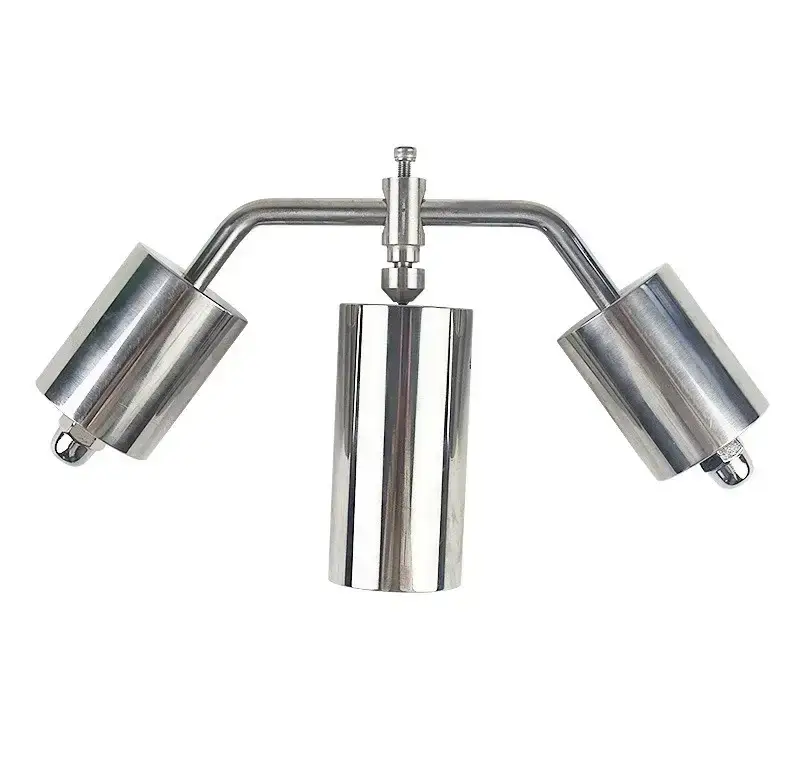

ลูกตุ้ม Deformation Capacity Tester AQY

Quick Details

• Model Number: AQY
• N.W.: 4.258 kg
• Size: 33X24X8cm
• Material: Stainlesssteel

Application:

 This experiment device is designed according to the "ball pressure test " requirements in GB2099 standards, mainly used for heat testing in household and similar plug sockets products. It is the necessary equipment for relevant manufacturers and qc department for product quality inspection and control.

Technical parameters

• Ball diameter 5mm(R2.5mm)
• Total Test pressure 20N±0.2N
• Sample support stand:diameter 50mm, length100mm,stainless steel solid cylinder
• Producing Materials: all made of stainless steel
• Reference standard: GB4706.1-2005,GB2099.1-2008,GB/T5159.21-2006,IEC60695-10-2:2003

 Notes: Supporting the use of the Ball pressure test we also Need two extremely hot ovens additional.

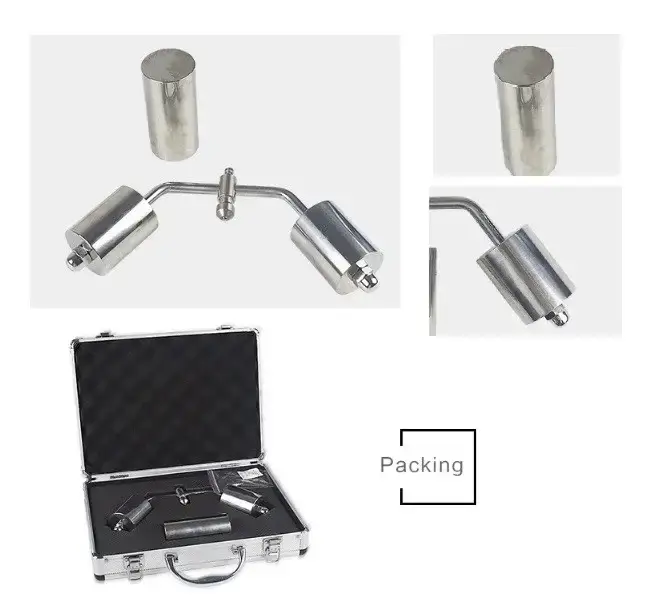

Structure diagram
