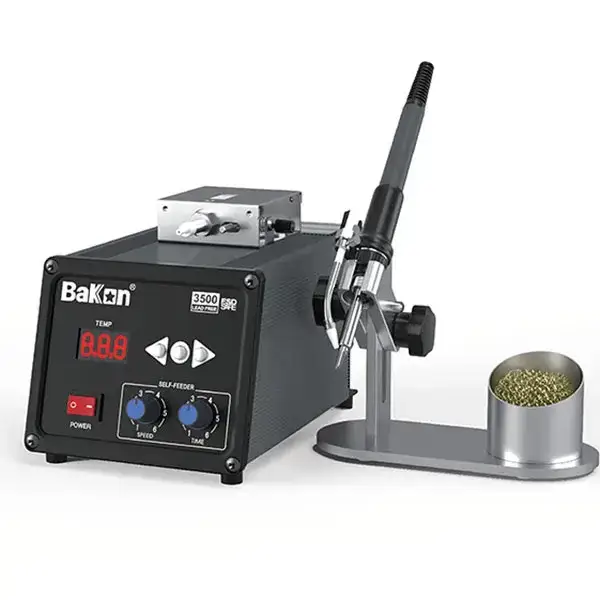

เครื่องบัดกรี BK3500 Automatic Lead-free Soldering Station

BK3500

Automatic lead-free soldering station

• High-frequency eddy current heating, fast heating and reheating speed, high-quality lead-free soldering, can be equipped with a variety of long-life soldering iron tips.
• Microcomputer control, super large screen display, button type temperature adjustment digital temperature correction.
• Fully automatic tin-out function, tin-out speed, tin-out amount, and tin-out time interval are all adjustable.
• Two types of tin-out hoses can be configured, making it easier and more convenient to use The long hose is suitable for movable welding and the short hose is suitable for fixed welding.
• It can be used as a lead-free soldering iron alone, and it can be equipped with a foot switch or a manual tin-out switch and a universal adjustment mechanism, which makes the welding flexible and convenient.

Specifications:

• Model: BK3500
• Operating Voltage: AC230V/50HZ
• Operating temperature range: 200-500°C
• Maximum instantaneous power: 120W
• Temperature stability (no load): ±2°C
• Resistance of soldering iron tip to ground: <2Ω
• Potential of the soldering iron tip to the ground: ≤2mV
• Tin out speed: =14mm/s-35mm/s
• Tin output (automatic mode): 0.5-200mm
• Tin out time interval: 0-1S
• Tin wire diameter: 0.8-1.5mm
