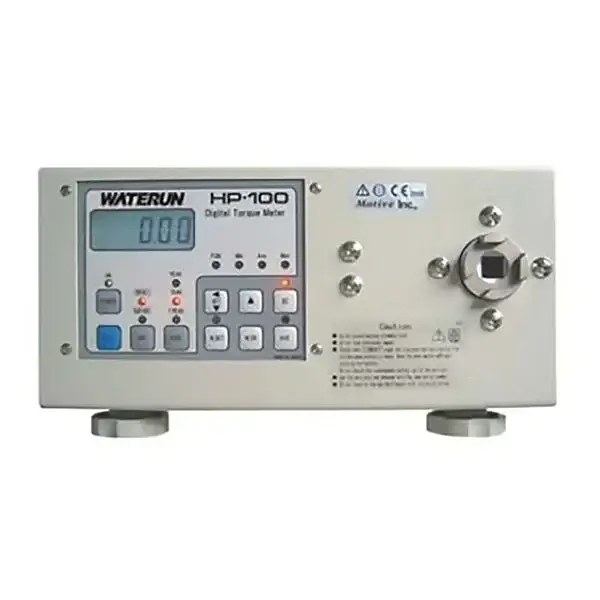

ทอร์คมิเตอร์ทอสอบแรงบิด HP-100 Intelligent Digital Torque Meter

DESCRIPTIONS:

• Wide measuring range, high accuracy, and the models are complete.
• The attached measuring joint can be run clockwise or counter-clockwise to measure the o/p torque with usual bit and the measured value will be cleared in setting time automatically.
• There are three measuring models: Peak, Track, F. Peak for easy choice to operate.
• It can calculate and display the maximum and average torque value.
• A built-in o/p terminal can be connected to the computer for recalling, editing, and calculating measured datum.

SPECIFICATIONS:

• Model: HP-100
• Measurement Range
  • Kgf.cm: 1.5-100.0
  • N.m: 0.15-10.0
  • Lbf.in: 1.5-90.0
• Accuracy: Within ±5%
• Power Source: 1.2V Nicd cell x 5
• Recharging Time: 8 hours with exclusive charger
• Continuous use at full charge: 30 hours
• Dimensions (mm): 230(W) x 123(D) x 65(H)
• Battery Life: Chargeable for 300 times or more
• Weight: 1.8 kg
• Charger: Input AC220-240V, Output DC7.2V 120mA
