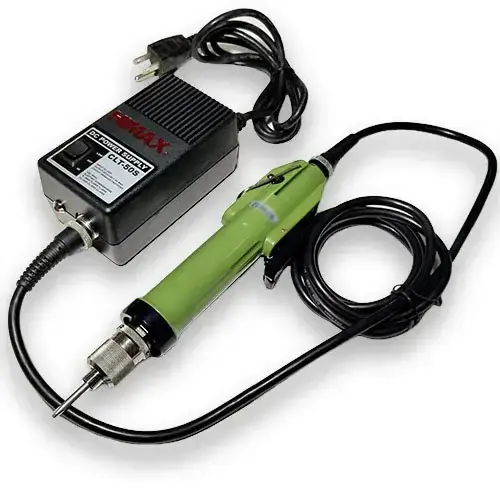

ไขควงไฟฟ้าปรับทอร์ค Himax T4 Torque Electric Screwdrive

DESCRIPTIONS:

Torque Controlled Electric Screwdriver
Middle Torque Type  1.0~5.5 Kgf-cm
Superior quality sustaining 15,000,000 cycles of test!

FEATURES:

• Stability: The unique 12mm oil-retaining bearing fixes position for transmitting  stable torque output.
• Accuracy: The light aluminum alloy clutch unit fitted with planet reduction gear lowers the mechanical friction coefficient and achieves the highest accuracy.
• High efficiency: Two sets of thrust ball bearings are installed in the longitudinal axis of rotation to increase the live load pressing capacity by 30%.
• Main applicable products: Digital Cameras, HDD, CD, Laser reading heads, GPS navigator, Car-carried sound equipment, Small VTR, TFT panels and Laptops.

Specifications:

• Model: T4
• Starting Mode: Trigger Start
• Output Torque Range:
  • Kgf-cm: 1.0-5.5
  • N-m: 0.1-0.55
  • Lbf-in: 0.9-4.8
• Torque Adjusting Mode: Stepless Adjustment
• No Load RPM (r.p.m) ± 5%:
  • HI: 1000
  • LOW: 700
• Applicable Screw Range (mm):
  • Machine: 1.4-2.6
  • Tapping: 1.4-2.3
• Applicable Bits: 6.35mm (1/4”)
• Deadweight (g): 310
