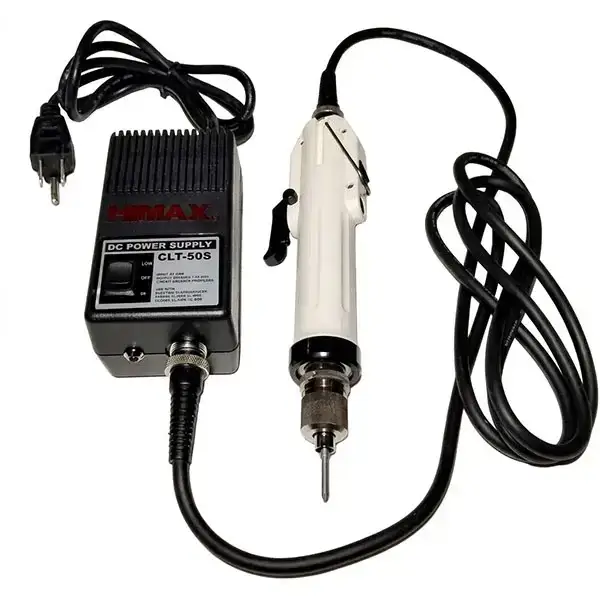

ไขควงไฟฟ้าปรับทอร์ค Himax T3 Torque Electric Screwdriver

Torque Controlled Electric Screwdriver

Low Torque Type 0.5~2.5 kgf.cm Precise torque gives full power!

Features:

• Stability: Two sets of ball bearing are used to fix position for transmission system and attain stable torque output for rotary transmission.
• Accuracy: Built-in needle roller bearing clutch unit lowers the mechanical friction coefficient and achieves the highest accuracy.
• No noise: Performance motor has fast heat elimination, which enables the screwdriver keep low temperature during continued operation.
• Main applicable products: Digital Cameras, HDD, CD, Laser reading heads, GPS navigator, Small VTR, Computers, TFT panels and NB notebook PC.

Specifications:

• Model: T3
• Starting Mode: Trigger Start

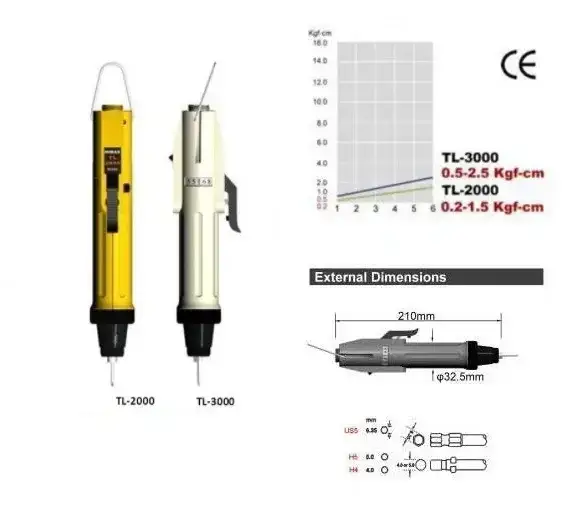

• Output Torque Range:
  • Kgf.cm: 0.5~2.5
  • N.m: 0.05~0.25
  • Lbf.in: 0.43~2.15
• Torque Adjusting Mode: Stepless Adjustment
• No Load RPM (r.p.m) ± 5%:
  • HI: 1000
  • LOW: 700
• Applicable Screw Range (mm):
  • Machine: 1.0~2.3
  • Tapping: 1.0~2.0
• Applicable Bits: H4
• Weight (g): 310
