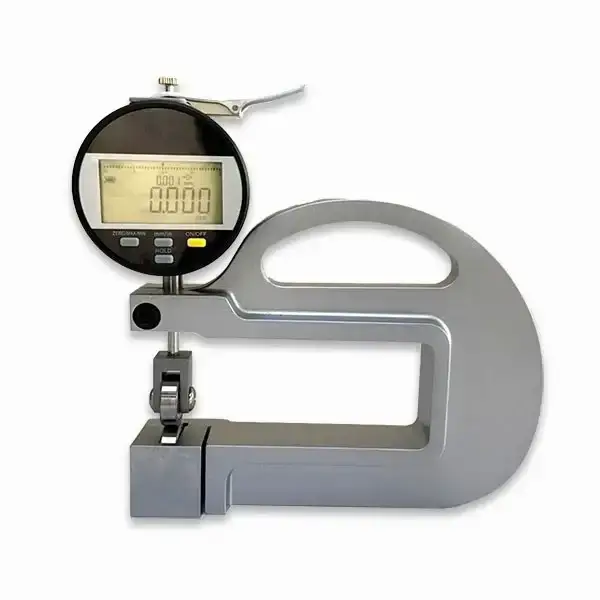

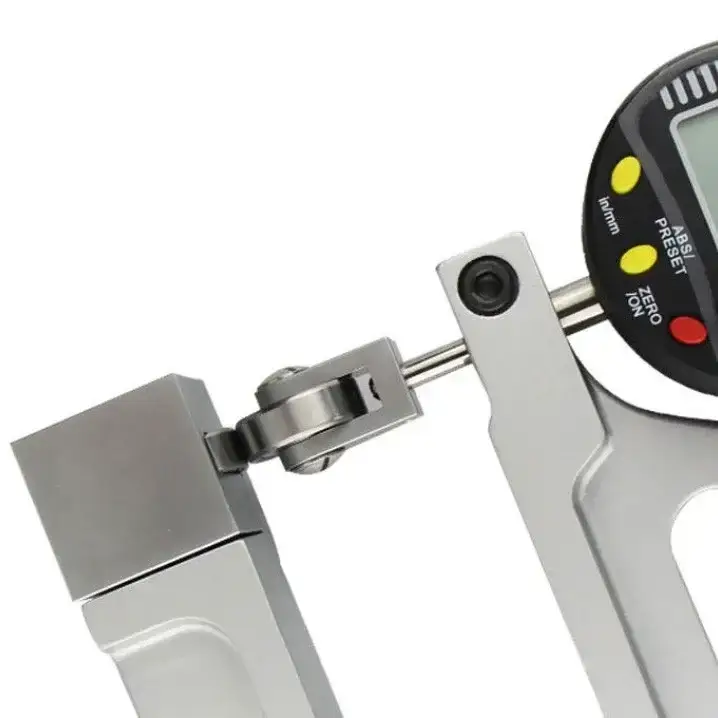

เครื่องวัดความหนาฟิล์มแบบล้อลูกกลิ้ง Film thickness gauge with roller

Function:
Digital Thickness Gauge with Roller Inserts is a measuring tool, which fixes the digital indicator onto the gauge bracket, with the measuring distance(thickness), between the gauge roller measuring head and the gauge bracket roller measuring head, displaying on the digital indicator. Digital Thickness Gauge with Roller Insert is used for the continuous measuring of belt object, such as plastic film.

Technical Specification:

• Ceramic measuring head, metal casing & handle, compact &firm structure, convenient & stable operation.
• Zero-setting at any position, Convenient for relative measurement.
• mm/inch measurement system conversion at any position.
• 3V environmental Lithium battery, battery life>1year
• Three different alternative measuring head types
• Measurement for the thickness of jewelry, leather, metal film, paper, rubber, fabric,and various metal panel,glass sheet etc

Technique Data

• Measuring Range: 0-10mm
• Resolution: 0.001mm/0.00005"
• Measuring throat depth: 100mm
• Accuracy: ±0.009m
• Performance Characteristics
• Battery: 3V
• Measuring speed: ≤3m/s
• Work environment temperature: 0~ +40 °C; relative humidity<80%
• Storage Temperature: -10~+60°C
