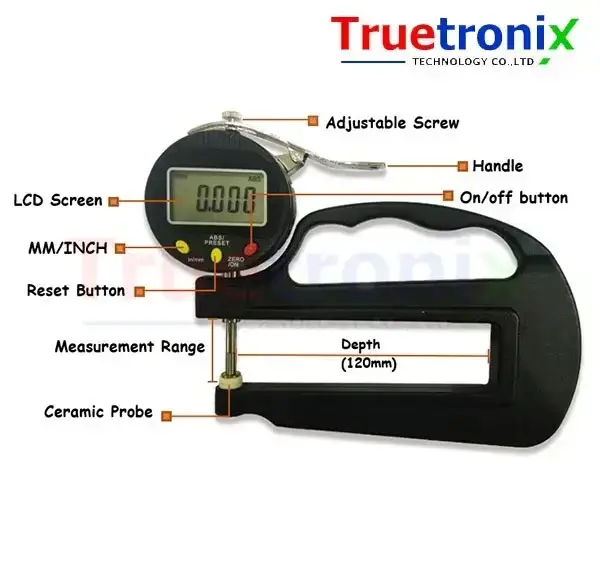

เครื่องวัดความหนาฟิล์มแบบลึก Digital thickness gage depth type 5339-10

Function:

• Model : 5339-10
• Measuring range: 0-10mm
• Resolution: 0.001mm
• Accuracy: ±0.009mm
• Depth: 120mm
• Zero-settion at any position
• With on-off power key
• mm/inch measurement system conversion at any position
• Fast display data for large LCD screen
• 3V environmental battery
• Suitable to measure the thickness of tube and to measure curved surface' thickness

Usage:

•  Depress the lever, therefore separate the upper and lower measuring heads, and wipe them clean.
•  Press the power key, therefore the power is on, and check whether the indicator works well.
• When the upper and lower measuring heads are closed, check whether the indicator displays zero, if not, press ther zero key and set zero.
•  Depress the lever, therefore separate ther upper measuring head in enough distance form the lower measuring head. Put flat the measured workpiece on the lower measuring head, and release the lever, therefore the upper measuring head contacts well with the measured workpiece, then read the measuring result on the indicator.
•  If readout in metric/inch different measurement system is required, press the mm/inch key.
