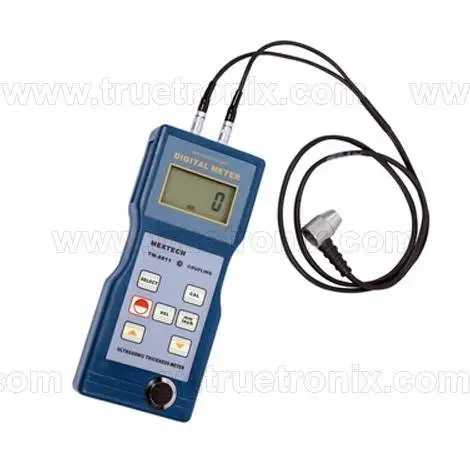

เครื่องวัดความหนาถังเหล็ก-แผ่นโลหะ TM-8811 Ultrasonic Thickness Meter

Application:

Used for measuring thickness and corrosion of pressure vessels, chemical equipment, boilers, oil storage tanks etc. in industries of petroleum, shipbuilding, and machine manufacturing.

Specifications:

• Measuring range: 1.5-200mm, 0.06-8inch
• Operating principle: ULTRASONIC
• Materials measured: any hard materials, including steel, cast iron, aluminum, red opper, brass, zinc, quartz glass, polyethylene, PVC, gray cast iron, nodular cast iron and other materials
• Sound velocity: 500-9000m/s
• Lower limit steel pipes: 15x2.0mm, 20x3.0mm determined by the transducer
• Calibration block: included
• Resolution: 0.1mm
• Accuracy: +/-(0.5%n+0.1)
• Power supply: 4x1.5V AA(UM-3)battery
• Battery indicator: low battery indicator
• Operating conditions: 0-+45C(32F-104F), ≤90%RH
• Dimensions: 160x68x32mm (6.3x2.68x1.26 inch)
• Weight: 208g / 0.46lb (not including battery)
